M. Power Tools CRB7/MK3/DX 7-Function Combination Router Base

  • CRB7/MK3/DX Combination Router Base- M. Power Tools
  • Image 2
  • CRB7/MK3/DX Combination Router Base Set- M. Power Tools
  • CRB7/MK3/DX Combination Router Base- Anti-Tilt feature
  • CRB7/MK3/DX Combination Router Base- clamp guide
  • CRB7/MK3/DX Combination Router Base- mortising
  • CRB7/MK3/DX Combination Router Base- dado
  • CRB7/MK3/DX Combination Router Base- edge
Retail:
$109.50
Our Low Price:
$103.99 (You save $5.51)
SKU:
CRB7/MK3/DX
Reviews:
Availability:
Item usually ships with 1-2 buisness days. if a unexpected delay occurs we will notify you as soon as possible.
Shipping:
Calculated at checkout


Product Description

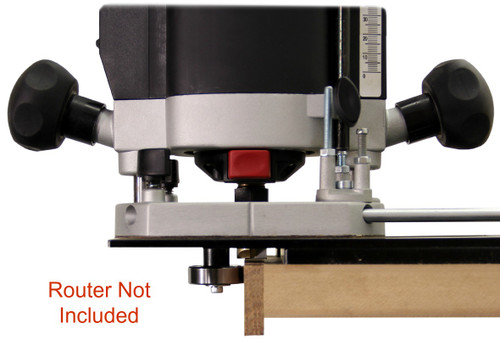

The Newly Improved CRB7/MK3/DX Combination router base from M. Power Tools offers 7 unique functions giving it incredible versatility.  Add the CRB7 MK3 Side Fence Kit or Edging Trim Kit for even more functionality.

With M. Powers CRB7 MK3 Combination Router Base, you get:

  • High precision, sturdy Offset Baseplate
  • Small Circle Compass
  • Anti Tilt Support
  • Adjustable Mortising
  • Large Circle Compass
  • False Panel Rebate Copier
  • Adjustable Clamp Guide
  • Fine tune adjusting with "Micro Adjust"
  • Indexed rule for quicker indication of router cutting
  • ergonomic comfort handle

Fitting the CRB7 MK3 router base to your favorite router couldn't be easier.  The New Crank Plates ad additional set of guide Rods allow the CRB to be fitted to any router with "2 x through rod drillings and rod pinch bolt".  Select the correct sized rods for your router and the Adjustable Crank Plates will adjust rod height and width simultaneously.  The hard anodized solid aluminum bridge, precision laser cut 3/16" acrylic base plate and precision turned steel and brass components ensure long life.

M. Power Tools has taken the incredibly popular CRB7 MK3 router Base and made it even better.  Now get Large Circle Compass Feature, 3 pairs of Guide Rods, and Guide Rod Locking Bars.  The Large Circle Compass feature combines the new aluminum compass hub and 25/64" Guide Rods to extend the circle range from 19" to over 50".  The Circle Diameter can also be micro adjusted without having to remove the router or assembly from its set-up.

Get 3 Pair of Guide Rods to allow the right fit for your router.  Guide Rod Pairs come in 9/32" diameter for routers with smaller rod drillings like the Porter Cable 690 series, 5/16" diameter for routers with larger rod drilling like the DeWalt 621, and a 25/64" diameter for use with the Large Circle Compass feature.  Get faster set up and spend less time when assembling the rods.  Insert the Lock Bars into the Guide Rod drillings to tighten or loosen the assembly.

Tool Functions:

  • New Large Circle Compass- cuts circles up to 50" in diameter.  Super Fast set-up and high level of precision, adjustability ad accuracy.
  • Adjustable Mortising- Unique feature that allows "Centered and Off Centered" Mortises.  Select and control the actual precise dimensions of the mortise.
  • Anti Tilt Support- Get variable height triangulated stabilization.  Where most router bases remain unsupported when edge routing, M. Power's CRB7 MK3 router base offers Anti Tilt Leg supports that eliminate router tilt.  This is especially ideal for routing work pieces with a high aspect ratio.
  • Small Circle Compass- Router Precision Circle holes that are actually smaller than the base of the router.  Micro adjust the circle dimension without disturbing the set up.  Min radius is 3/4", min diameter is 1-1/2" and max radius is 8-3/4" radius and max diameter is 17-1/2".
  • Adjustable Clamp Guide- Run the CRB7 router base up against your clamp guide to accurately route parallel Dados along the length or width of your work piece.  Get quicker set-up time by using the Micro Adjuster.
  • Off Set Base Plate- Increases overall router stability, reducing errors when edge molding by more than doubling the surface contact area between router and work piece.  The CRB7 also positions the pivot hand guiding the router toward the center of the panel, smoothing out the router pass action and reducing the chance of burn marks.
  • Adjustable False Panel Dado Copier- Get exceptionally quick and accurate repeats of molded dados.




Product Videos

Combination Router Base CRB7 MK3 - MPOWER Tools (05:47)
http://www.m-powertools.com/CRB7-MK3-combination-router-base.htm 7 FUNCTIONS 1 ROUTER JIG - MPOWER YOUR ROUTER! 1) Adjustable Dado Jig / Trenching Jig. 2) Mortising Jig. 3)Anti Tilt Jig. 4)Small Router Compass Jig. 5) Offset Base Jig. 6) Adjustable Faux Panel Rebate Copying Jig. 7)Large Router Compass: ACCESSORIES 8) Dowel and Edging Flush Trim. 9) Edge Guide Side Fence For more information visit: http://www.m-powertools.com/CRB7-MK3-combination-router-base.htm
  • Combination Ro...
    http://www.m-powertools.com/CRB7-MK3-combination-router-base.h...

Warranty Information

Manufacturers 2 year warranty, plus our 100% Satisfaction Guarantee. We will replace or refund immediately if you are unhappy with any purchase from us for any reason at any time. We will do all we can to help you with any problem you have. Most manufacturers will only replace a defective tool and they have to decide what defective means.
