Carbide Tipped Straight Router Bits

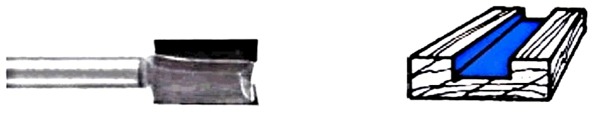

1/4" Shank Straight Bits - Whiteside

For smaller sizes see solid carbide straight bits

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day

Cutting DiameterCutting LengthOverall LengthSpecial UsePart #
1/4" SHANK • SINGLE FLUTE
1/4" 3/4" 2 1/4"   1004
1/4" 1" 2 1/2"   1005
1/4" 1" 3 1/8"   1007
9/32" 3/4" 2 1/4"   1008
1/4" SHANK • DOUBLE FLUTE
1/4" 1/2" 2"   1012
1/4" 3/4" 2 1/4" Incra™ 1013
1/4" 1" 2 1/2"   1014
1/4" 1" 3"   1016
1/4" 1" 3 1/4" Air Router 1016-01
9/32" 1" 3"   1018
5/16" 1" 2 1/2" OmniJig® #43300 1019
5/16" 1" 2 3/4" Leigh #140 1020
5/16" 1" 2 3/4" Leigh #140-8mm shank 1020x8
3/8" 3/4" 2 1/4"   1021
3/8" 1" 2 1/2" Incra™ 1022
3/8" 1 1/4" 2 3/4"   1023
13/32" 1" 2 1/2"   1023A
7/16" 1" 2 1/2"   1024
31/64" 3/4" 2 1/4" Undersize Plywood Dado 1024A
1/2" 3/4" 2 1/4"   1025
1/2" 1" 2 1/2" OmniJig® #43318 1026
9/16" 3/4" 2 1/4"   1027
19/32" 3/4" 2 1/4" Undersize Plywood Dado 1027A
5/8" 3/4" 2 1/8"   1028
11/16" 3/4" 2 1/8"   1029
23/32" 3/4" 2 1/8" Undersize Plywood Dado 1029A
3/4" 3/4" 2 1/8"   1030
3/4" 1" 2 5/8"   1031
1" 3/4" 2 1/8"   1033
1 1/4" 1/2" 2 1/8" Mortising 1303

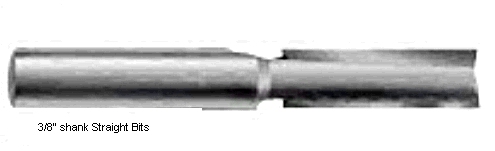

3/8" Shank Straight Bits

Cutting DiameterCutting LengthOverall LengthSpecial UsePart #
3/8" SHANK • SINGLE FLUTE
3/8" 1" 2 5/8"   1035
3/8" 1 1/4" 2 7/8"   1036
3/8" SHANK • DOUBLE FLUTE
3/8" 1" 2 5/8"   1039
3/8" 1 1/4" 2 7/8"   1040
3/8" 1 1/4" 3 5/8" Air Router 1041
1/2" 1" 2 1/2"   1043
7/8" 1" 2 1/2"   1045




1/2" Shank Straight Bits

Cutting DiameterCutting LengthOverall LengthSpecial UsePart #
1/2" SHANK • SINGLE FLUTE
3/8" 1" 2 5/8"   1049
3/8" 1 1/4" 2 7/8"   1050
1/2" 3/4" 2 3/8" Midwest Machine 1051
1/2" 1 1/4" 2 7/8"   1052
1/2" 1 1/2" 3 1/8"   1054
1/2" 2" 4 1/8"   1055
1/2" 2 1/2" 4 3/8"   1055A
1/2" SHANK • DOUBLE FLUTE
1/4" 3/4" 2 3/8" Incra™ 1058
9/32" 3/4" 2 3/8"   1059
5/16" 1" 2 5/8"   1060
3/8" 3/4" 2 3/8"   1061
3/8" 1" 2 5/8" Incra™ 1062
3/8" 1 1/4" 2 7/8"   1063
13/32" 3/4" 2 1/2"   1064
7/16" 1 1/4" 2 7/8"   1065
7/16" 1 1/4" 3 1/4" Leigh #150 1065L
31/64" 1" 2 5/8" Undersize Plywood Dado 1065A
1/2" 1" 2 5/8"   1066
1/2" 1 1/4" 2 7/8" Leigh #160 1067
1/2" 1 1/4" 2 7/8" Carbide Boring Point 1067F
1/2" 1 1/2" 3 1/8"   1069
1/2" 1 1/2" 3 1/8" Down Shear 1069DS
1/2" 1 1/2" 4 1/8"   1070
1/2" 2" 3 1/2"   1071
1/2" 2" 4 1/8"   1072
1/2" 2 1/2" 4 3/8"   1073
1/2" 2 1/2" 5 1/2"   1073-01
1/2" 2 1/2" 5 1/2"  W/ flat on shank 1073-03
17/32" 1 1/4" 2 7/8"   1074
9/16" 1 1/4" 3"   1075
19/32" 3/4" 2 1/4" Undersize Plywood Dado 1075A
5/8" 1" 2 1/2"   1076
5/8" 1" 2 1/2" Carbide Boring Point 1076F
5/8" 1 1/4" 3"   1077
5/8" 1 1/2" 3"   1078
5/8" 2" 4"   1079
21/32" 1 1/4" 3"   1080
11/16" 1" 2 1/2"   1082
11/16" 1 1/4" 3"   1083
23/32" 1" 2 1/2" Undersize Plywood Dado 1083A
3/4" 5/8" 2 1/4" Mortising 1302A
3/4" 1" 2 3/4"   1084
3/4" 1 1/4" 3"   1085
3/4" 1 1/4" 3" Carbide Boring Point 1085F
3/4" 1 1/2" 3 1/4"   1086
3/4" 2" 3 5/8"   1087
25/32" 1 1/4" 3"   1088
13/16" 1 1/4" 3"   1090
7/8" 1 1/4" 3"   1091
15/16" 1 1/4" 3"   1092
1" 1 1/4" 3"   1093
1" 1 1/4" 3" Carbide Boring Point 1093F
1" 1 1/2" 3"   1094
1" 2" 3 3/4"   1095
1 1/8" 1 1/2" 3"   1096
1 1/4" 1/2" 2 1/8" Mortising 1304
1 1/4" 1 1/2" 3"   1097
1 3/8" 1 1/4" 3"   1098
1 1/2" 1 1/4" 3"   1099
1 3/4" 1 1/4" 3"   1100
2" 1 1/4" 3"   1101
