Round Over Router Bits




Roundover Bits - Whiteside

Ball Bearing Guide

Whiteside Roundover Router bits are made in the USA and have a reputation for quality and dependability.  Choose from one of the standard Whiteside roundover router bits below, or get a quote on a custom roundover router bit.

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!

RadiusLarge DiameterCutting LengthPart #
1/4" Shank
1/16" 5/8" 1/2" 2000A
3/32" 11/16" 1/2" 2000B
1/8" 3/4" 1/2" 2000C
5/32" 13/16" 1/2" 2000D
3/16" 7/8" 1/2" 2000
1/4" 1" 1/2" 2001
5/16" 1 1/8" 1/2" 2002
3/8" 1 1/4" 5/8" 2003
1/2" 1 1/2" 3/4" 2004
1/2" Shank
1/8" 3/4" 1/2" 2005C
3/16" 7/8" 1/2" 2005
1/4" 1" 1/2" 2006
5/16" 1 1/8" 1/2" 2007
3/8" 1 1/4" 5/8" 2008
7/16" 1 3/8" 5/8" 2008A
1/2" 1 1/2" 3/4" 2009
5/8" 1 3/4" 1" 2009A
9/16" 1 5/8" 3/4" 2009B
3/4" 2" 1" 2010
7/8" 2 1/4" 1 1/8" 2011
1" 2 1/2" 1 5/16" 2012
1 1/8" 3" 1 1/2" 2013
1 1/4" 3 1/4" 1 3/4" 2014
1 3/8" 3 1/2" 1 3/4" 2015
1 1/2" 3 3/4" 1 7/8" 2016
Bearing:  Use B3 for Rounding Over
  Use B4 for 2013 thru 2016




Double Round Over

with Adjustable Cutting Length



RadiusLarge DiameterOverall LengthPart Number
1/2" SHANK
1/8" 1 1/8" 3 3/4" 2160
3/16" 1 1/4" 3 3/4" 2162
1/4" 1 3/8" 3 3/4" 2164
1/8" 1 1/8" Top Cutter Only 2160RH
3/16" 1 1/4" Top Cutter Only 2162RH
1/4" 1 3/8" Top Cutter Only 2164RH

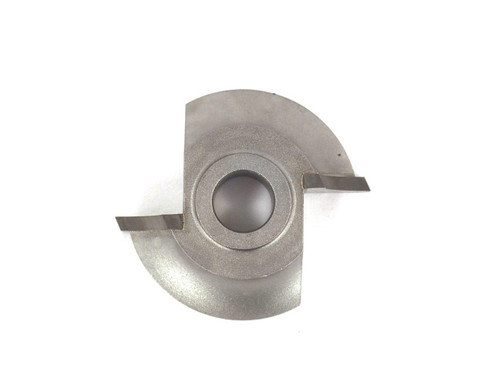

1/8" 1 1/8" End Cutter Only 2160LH
3/16" 1 1/4" End Cutter Only 2162LH
1/4" 1 3/8" End Cutter Only 2164LH

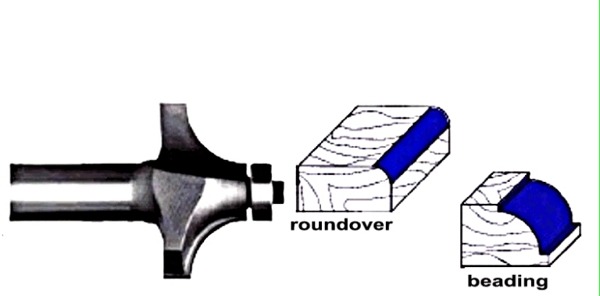

Assemblies Sold with B5 Bearing for flush round over
Use B20 Bearing for 1/16" Bead
Use B27 Bearing for 1/8" Bead

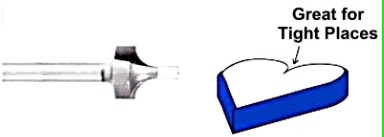

Roundover Bits - Small Pilot

Extra Small Brass Pilot (5/32" dia.) allows these bits to roundover edges on finely detailed workpieces with intricate contours, tight confines, and narrow openings. These bits give professional results without all the tedious hand sanding. Carbide cutting edges far outlast comparable high speed steel bits.



RadiusLarge DiameterCutting LengthOverall LengthPart Number
1/4" SHANK
1/16" 3/8" 7/16" 2" 1978
1/8" 3/8" 7/16" 2" 1980
1/4" 5/8" 1/2" 2 1/8" 1982
3/8" 7/8" 5/8" 2 1/4" 1984



Laminate Roundover Bits

RadiusLarge DiameterCutting LengthOverall LengthPart Number
1/4" SHANK
1/16" 1/2" 3/16" 1-5/8" 2630
1/16" 1/2" 3/16" 1-5/8" 2631
