Chamfer Router Bits

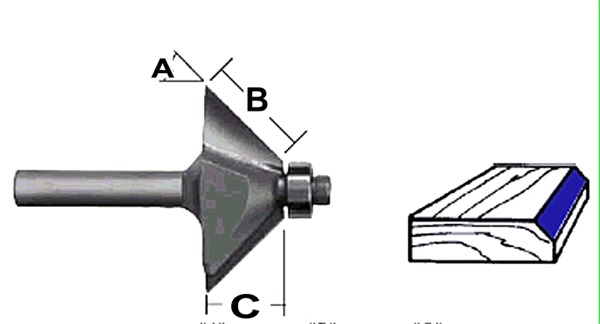

45 Degree Chamfer Bits - Whiteside
| "A" Degree of Angle | "B" Cutting Length | "C" Cutting Height | Overall Length | Part Number |
| 1/4" SHANK | ||||
| 45° | 5/8" | 7/16" | 2" | 2302 |
| 1/2" SHANK | ||||
| 45° | 5/8" | 7/16" | 2 1/4" | 2305 |
| 45° | 1 1/16" | 3/4" | 2 1/2" | 2306 |
| 45° | 1 1/2" | 1 1/16" | 3" | 2310 |
Bearing Number: B3
Edge Bevel
| "A" Degree of Angle | "B" Cutting Length | "C" Cutting Height | Overall Length | Part Number |
| 1/4" SHANK | ||||
| 7° | 3/8" | 3/8" | 2 1/8" | * 2298 |
| 15° | 1/2" | 1/2" | 2" | 2300 |
| 15° | 1/4" | 1/4" | 2" | * 2300A |
| 25° | 9/16" | 1/2" | 2" | 2301 |
| 30° | 7/8" | 3/4" | 2 3/4" | (1) 2308 |
| 1/2" SHANK | ||||
| 15° | 1" | 15/16" | 2 3/4" | (3) 2325 |
| 22 1/2° | 15/16" | 7/8" | 2 3/4" | (2) 2307 |
| 30° | 7/8" | 3/4" | 2 3/4" | (1) 2309 |
| Bearing Number: B3 | ||||
| * Used on Laminate Trim | ||||
| (1) Used for six sided boxes | ||||
| (2) Used for eight sided boxes | ||||
| (3) Used for twelve sided boxes |
