Roman Ogee Router Bits


Roman Ogee - Whiteside

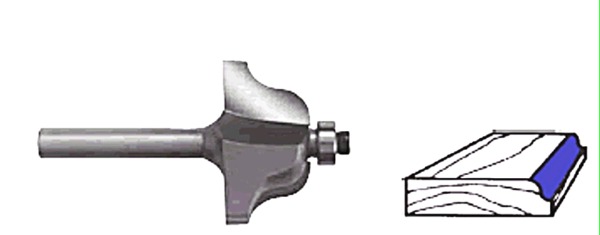

Whiteside Roman Ogee bits have a similar profile to an Ogee bit, but on a Roman Ogee bit the convex ad concave curves are reversed.  On a Roman Ogee bit, the convex curve is at the top and conects smoothly to the concave curve on the bottom.  You can adjust the depth of cut to create a fillet, or have the curves blend into the workpiece.

Place your order for Whiteside Router bits before 2:30pm ET Mon-Fri to have your order ship same Day!



RadiusLarge DiameterCutting LengthOverall LengthPart Number
1/4" SHANK
5/32" 1 1/8" 9/16" 2" 2200
1/4" 1 1/2" 11/16" 2 1/4" 2201
1/2" SHANK
5/32" 1 1/8" 9/16" 2 1/4" 2202
1/4" 1 1/2" 11/16" 2 3/8" 2203

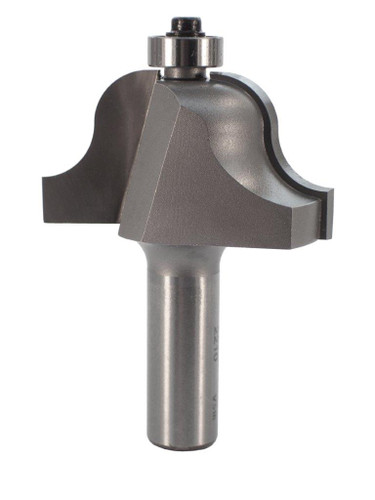

3/8" 2" 1" 2 3/4" 2210

Bearing Number: B3
