Screw Machine - Heavy Duty

Triumph Screw Machine Drill Bits are made from high speed steel to perform even under high temperature and pressure. Finished in black oxide to resist corrosion. Heavy-duty construction to prolong the life and durability of your tool. 135 degree split point helps resist walking and damaging the surface of your project.

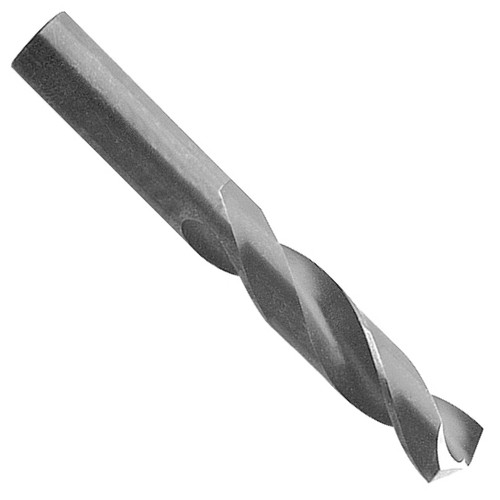

Triumph Twist Drill - Screw Machine Length Drill   Point: 135° Split Point
  Material: High Speed Steel
  Coating/Finish: Black Oxide
  Other: Heavy-Duty Construction



Fractional Screw Machine Twist Drills

SizeDecimal EquivalentFlute LengthOverall LengthPkg QtyPart #
3/64 0.0469 1/2 1-3/8 12 044403
1/16 0.0625 5/8 1-5/8 12 044404
5/64 0.0781 11/16 1-11/16 12 044405
3/32 0.0938 3/4 1-3/4 12 044406
7/64 0.1094 13/16 1-13/16 12 044407
1/8 0.125 7/8 1-7/8 12 044408
9/64 0.1406 15/16 1-15/16 12 044409
5/32 0.1562 1 2-1/16 12 044410
11/64 0.1719 1-1/16 2-1/8 12 044411
3/16 0.1875 1-1/8 2-3/16 12 044412
13/64 0.2031 1-3/16 2-1/4 12 044413
7/32 0.2188 1-1/4 2-3/8 12 044414
15/64 0.2344 1-5/16 2-7/16 12 044415
1/4 0.25 1-3/8 2-1/2 12 044416
17/64 0.2656 1-7/16 2-5/8 12 044417
9/32 0.2812 1-1/2 2-11/16 12 044418
19/64 0.2969 1-9/16 2-3/4 12 044419
5/16 0.3125 1-5/8 2-13/16 6 044420
21/64 0.3281 1-11/16 2-15/16 6 044421
11/32 0.3438 1-11/16 3 6 044422
23/64 0.3594 1-3/4 3-1/16 6 044423
3/8 0.375 1-13/16 3-1/8 6 044424
25/64 0.3906 1-7/8 3-1/4 6 044425
13/32 0.4062 1-15/16 3-5/16 6 044426
27/64 0.4219 2 3-3/8 6 044427
7/16 0.4375 2-1/16 3-7/16 6 044428
29/64 0.4531 2-1/8 3-9/16 6 044429
15/32 0.4688 2-1/8 3-5/8 6 044430
31/64 0.4844 2-3/16 3-11/16 6 044431
1/2 0.5 2-1/4 3-3/4 6 044432



Wire Size Screw Machine Twist Drills

SizeDecimal EquivalentFlute LengthOverall LengthPkg QtyPart #
60 0.04 1/2 1-3/8 12 044560
59 0.041 1/2 1-3/8 12 044559
58 0.042 1/2 1-3/8 12 044558
57 0.043 1/2 1-3/8 12 044557
56 0.0465 1/2 1-3/8 12 044556
55 0.052 5/8 1-5/8 12 044555
54 0.055 5/8 1-5/8 12 044554
53 0.0595 5/8 1-5/8 12 044553
52 0.0635 11/16 1-11/16 12 044552
51 0.067 11/16 1-11/16 12 044551
50 0.07 11/16 1-11/16 12 044550
49 0.073 11/16 1-11/16 12 044549
48 0.076 11/16 1-11/16 12 044548
47 0.0785 11/16 1-11/16 12 044547
46 0.081 3/4 1-3/4 12 044546
45 0.082 3/4 1-3/4 12 044545
44 0.086 3/4 1-3/4 12 044544
43 0.089 3/4 1-3/4 12 044543
42 0.0935 3/4 1-3/4 12 044542
41 0.096 13/16 1-13/16 12 044541
40 0.098 13/16 1-13/16 12 044540
39 0.0995 13/16 1-13/16 12 044539
38 0.1015 13/16 1-13/16 12 044538
37 0.104 13/16 1-13/16 12 044537
36 0.1065 13/16 1-13/16 12 044536
35 0.11 7/8 1-7/8 12 044535
34 0.111 7/8 1-7/8 12 044534
33 0.113 7/8 1-7/8 12 044533
32 0.116 7/8 1-7/8 12 044532
31 0.12 7/8 1-7/8 12 044531
30 0.1285 15/16 1-15/16 12 044530
29 0.136 15/16 1-15/16 12 044529
28 0.1405 15/16 1-15/16 12 044528
27 0.144 1 2-1/16 12 044527
26 0.147 1 2-1/16 12 044526
25 0.1495 1 2-1/16 12 044525
24 0.152 1 2-1/16 12 044524
23 0.154 1 2-1/16 12 044523
22 0.157 1-1/16 2-1/8 12 044522
21 0.159 1-1/16 2-1/8 12 044521
20 0.161 1-1/16 2-1/8 12 044520
19 0.166 1-1/16 2-1/8 12 044519
18 0.1695 1-1/16 2-1/8 12 044518
17 0.173 1-1/8 2-3/16 12 044517
16 0.177 1-1/8 2-3/16 12 044516
15 0.18 1-1/8 2-3/16 12 044515
14 0.182 1-1/8 2-3/16 12 044514
13 0.185 1-1/8 2-3/16 12 044513
12 0.189 1-3/16 2-1/4 12 044512
11 0.191 1-3/16 2-1/4 12 044511
10 0.1935 1-3/16 2-1/4 12 044510
9 0.196 1-3/16 2-1/4 12 044509
8 0.199 1-3/16 2-1/4 12 044508
7 0.201 1-3/16 2-1/4 12 044507
6 0.204 1-1/4 2-3/8 12 044506
5 0.2055 1-1/4 2-3/8 12 044505
4 0.209 1-1/4 2-3/8 12 044504
3 0.213 1-1/4 2-3/8 12 044503
2 0.221 1-5/16 2-7/16 12 044502
1 0.228 1-5/16 2-7/16 12 044501
