Router Bits

Insert Router Bits - Southeast Tool

These router bits feature replaceable carbide inserts, reducing down-time and eliminating the need to replace the entire bit.

Southeast Tool uses a premium grade of carbide for all their insert tooling.  Every carbide insert knive uses a a sub micron carbide grade that lasts longer and holds a sharp cutting edge.

To get the most out of your insert knives, make sure the torque is even on your cutting tool.  Using a Torque screwdriver can ensure that your torque is even and extend the life of your cutting tools.

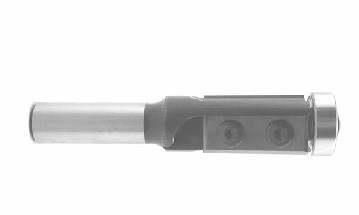

2 Flute Flush Trim Insert Router Bits

Cut DiameterCut LengthShankOALInsertPart #
3/4" 12mm 1/4" 2-1/4" SI-121215 SEIFT-71214
3/4" 12mm 1/2" 2-1/2" SI-121215 SEIFT-71212
3/4" 30mm 1/2" 3-3/16" SI-301215 SEIFT-73012
3/4" 40mm 1/2" 3-5/8" SI-401215 SEIFT-74012
3/4" 50mm 1/2" 3-15/16" SI-501217 SEIFT-75012



1 Flute Insert Straight Router Bits

Cut DiameterCut LengthShankOALInsertPart #
3/4" 30mm 1/2" 3-3/8" SI-2951215 SEIS1-73012
3/4" 40mm 1/2" 3-3/8" SI-3951215 SEIS1-74012



2 Flute Insert Straight Router Bits

Cut DiameterCut LengthShankOALInsertPart #
3/4" 30mm 3/4" 3" SI-2951215 SEINS-34
3/4" 30mm 1/2" 3" SI-301215 SEINS-34-12
3/4" 40mm 1/2 " 3-5/16" SI-401215 SEIS2-740
3/4" 50mm 1/2" 3-11/16" SI-501217 SEIS2-750
3/4" 30mm 5/8" 3" SI-2951215 SEINS-34-58
3/4" 40mm 3/4" 4" SI-3951215 SEINS-34-40
3/4" 50mm 3/4" 4-1/4" SI-4951215 SEINS-34-50
1" 30mm 1/2" 3" SI-2951215 SEINS-1-30



2 Flute Insert Template Router Bits - 1/2" Shank

Cut DiameterCut LengthOALBearingInsertsPart #
3/4" 30mm 3" SBE155 SI-2951215 SEIT750-30
3/4" 40mm 3-5/16" SBE155 SI-3951215 SEIT750-40
3/4" 50mm 3 -1/16" SBE155 SI-501217 SEIT750-50
1-1/8" 30mm 3" SBE150 SI-2951215 SEIT1125-30
1-1/8" 40mm 3-5/16" SBE150 SI-3951215 SEIT1125-40
1-1/8" 50mm 3-11/16" SBE150 SI-4951215 SEIT1125-50



1 Flute V-Groove Router Bits - 1/2" Shank

Cut DiameterCut LengthAngleShankOALInsertPart #
25mm 15.5mm 90º 1/2" 2-5/8" SIV151215 SEIV90-12
18mm 12mm 91º 1/2" 2-5/16" SI-121215 SEIV91-12



22 Degree Bevel Router Bits - 2 Flute

Small DiameterCut LengthAngleShankOALInsertPart #
3/4" 12mm 22º 1/4" 2-1/8" SI-121215 SEIBT22-14
3/4" 12mm 22º 1/2" 2-1/4" SI-121215 SEIBT22-12



45 Degree Bevel Router Bits - 2 Flute

Small DiameterCut LengthAngleShankOALInsertPart #
3/4" 12mm 45º 1/4" 2-1/8" SI-121215 SEIBT45-14
3/4" 12mm 45º 1/2" 2-1/4" SI-121215 SEIBT45-12



Insert Compression Router Bits - 2+2

Cut DiameterCut LengthShankOALInsertsPart #
1-1/4" 40mm 3/4" 3-3/4" SI-301215, SI-121215 SEINS22-40
1-1/4" 50mm 3/4" 4-1/2" SI-501215, SI-121215 SEINS22-50



45 Degree Insert Router Bit - 1 Flute

DiameterCut HeightShankPart #
50mm 1" 3/4" SECS143IR

Replacement Insert: Part # SECS143IR insert
