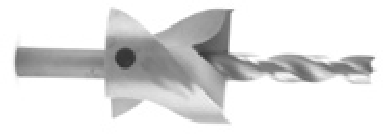

Adjustable Counterbore, Style 5A
Adjustable Counterbore, Style # 5A - Counterboring Flat Bottom Holes - Southeast Tool
Drill is held in place with two opposing set screws.
Carbon Steel.
Please note that center drills are not included in the sale of counterbores.
| Counterbore Diameter | Center Drill Hole Diameter | Overall Length | Part # |
|---|---|---|---|
| 3/8" | 3/16" | 1 1/2" | SE15301 |
| 7/16" | 3/16" | 1 1/2" | SE153001 |
| 7/16" | 7/32" | 1 1/2" | SE153002 |
| 1/2" | 3/16" | 1 1/2" | SE15302 |
| 1/2" | 7/32" | 1 1/2" | SE15303 |
| 1/2" | 1/4" | 1 1/2" | SE15304 |
| 5/8" | 1/4" | 1 1/2" | SE15305 |
| 5/8" | 5/16" | 1 1/2" | SE15306 |
| 3/4" | 1/4" | 2" | SE15307 |
| 3/4" | 5/16" | 2" | SE15308 |
| 7/8" | 1/4" | 2" | SE15309 |
| 7/8" | 5/16" | 2" | SE15310 |
| 7/8" | 3/8" | 2" | SE15311 |
| 7/8" | 7/16" | 2" | SE15312 |
| 1" | 1/4" | 2" | SE15313 |
| 1" | 5/16" | 2" | SE15314 |
| 1" | 3/8" | 2" | SE15315 |
| 1" | 7/16" | 2" | SE15316 |
| 1" | 1/2" | 2" | SE15317 |
| 1 1/8" | *5/16" x 1/2" | 2" | SE15318 |
| 1 1/8" | *3/8" x 1/2" | 2" | SE15319 |
| 1 1/8" | 7/16" | 2" | SE15320 |
| 1 1/8" | 1/2" | 2" | SE15321 |
| 1 1/4" | *5/16" x 1/2" | 2" | SE15322 |
| 1 1/4" | *3/8" x 1/2" | 2" | SE15323 |
| 1 1/4" | 7/16" | 2" | SE15324 |
| 1 1/4" | 1/2" | 2" | SE15325 |
| 1 3/8" | *3/8" x 1/2" | 2" | SE15326 |
| 1 3/8" | 1/2" | 2" | SE15328 |
| 1 1/2" | *3/8" x 1/2" | 2" | SE15329 |
| 1 1/2" | *7/16" x 1/2" | 2" | SE15330 |
| 1 1/2" | 1/2" | 2" | SE15331 |
| 1 1/2" | 9/16" | 2" | SE15332 |
| 1 1/2" | 5/8" | 2" | SE15333 |
| 1 5/8" | 1/2" | 2" | SE15334 |
| 1 3/4" | 1/2" | 2" | SE15335 |
*Indicates a stepped hole diameter allowing the tool to be clamped to a 1/2˝ shank drill.
