Router Table Set, 27x43 Offset, M-LS17 Positioner, Metric Wonder Fence, Incra M-RT Combo#3

  • Incra RT Combo #3 - 27 x 43 Offset Router Table - LS17 Positioner & Wonder Fence
  • Incra Router Plate with MagnaLOCK Rings - Incra M-RT COMBO#3
  • Incra LS Positioner Detail
  • Incra Shop Stop
  • Incra Master Reference Guide and Template Library
  • The Incra Wonder Fence Split Fence Accepts the Largest Router Bits
Retail:
$1,129.95
Our Low Price:
$981.71 (You save $148.24)
SKU:
851-M-RT Combo #3
Brand:
Reviews:
Availability:
This product will ship approximately 4-6 weeks from the order date. Orders will ship sooner whenever possible.
Shipping:
Free Shipping


Product Description

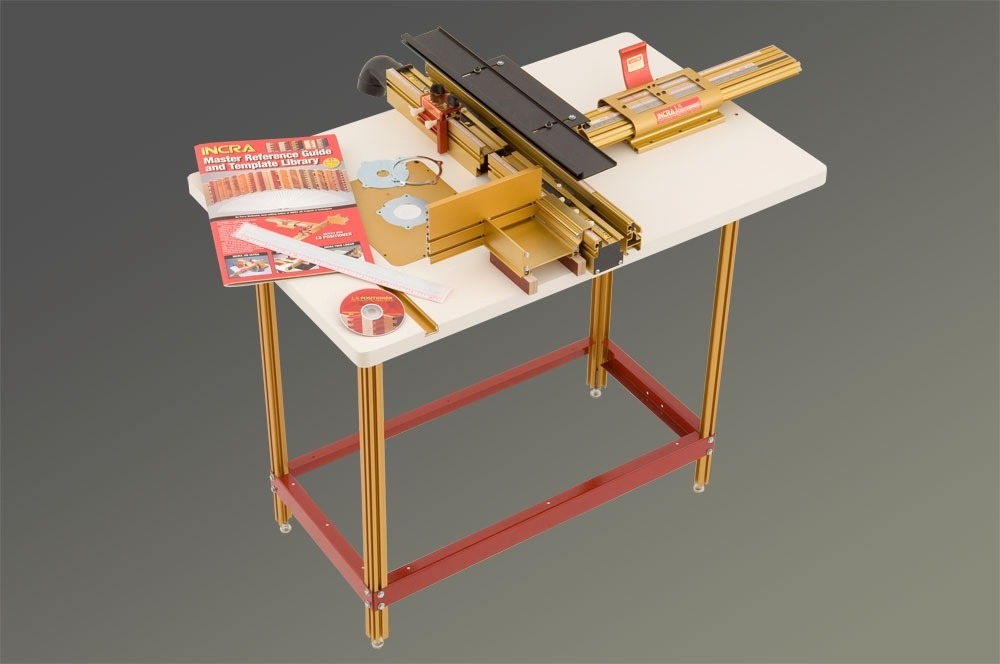

Metric Router Table Combo #3 from Incra measures 27" x 43" and includes the top of the line Wonder Fence, allowing you to accomplish virtually any router, shaper or jointer job you can throw at it. The table has an offset router plate to accommodate the 430mm LS Positioner and is sized to handle larger routing tasks.

INCRA Metric Router Table Combo #3 Consists of:

  • INCRA Metric LS Positioner 430mm - The LS Positioner offers rock-solid fence travel of 430mm. Lifting the red locking lever causes the patented steel lead screw positioning system to instantly snap the fence to the dead center of any multiple of 1mm with an accuracy of 0.05mm. This allows fence positioning far beyond what's possible by eyesight alone, and fence setups are instantly repeatable. The integrated micro adjust knob allows moving between whole increments with 0.025mm resolution for total control over small fence adjustments.

  • 28" Pro II Fence - The Pro-II joinery fence is an updated, beefed-up version of the earlier Pro-28 Fence and allows the addition of the new, super-adjustable Wonder Fence. The extrusion is wider than the original, the face has been machined flat, and the T-slot accepts the larger hardware required by the Wonder Fence. Patented Incremental racks are installed on the rear of the fence for complete compatibility with the ShopStop and Incra Stop, and the fence directly accepts the Jumbo Right Angle fixture. A heavy duty 13in stop extender bar telescopes from either end of the fence to stop cuts on longer boards.

  • Wonder Fence Heavy Duty Split Fence (Metric) - The Wonder Fence slides into the front T-slot of the Pro-II joinery fence, and it adds adjustability to accept any size router bit and accommodates zero-clearance subfences. The Wonder Fence also adds the ability to very precisely offset the infeed and outfeed fence halves for edge jointing rough lumber or setting up for complex moulding jobs like reversible glue joints.

  • Hi-Rise Fence Cap - Keeps larger parts perfectly vertical for edge machining operations.

  • INCRA Shop Stop - Instead of the basic stop block of typical router fences, the included INCRA Shop Stop is based on their patented incremental positioning racks to give you unparalleled accuracy and repeatability when limiting a board's travel across the router bit or setting the endpoints of stopped grooves for drawer and box bottoms.

  • Right Angle Fixture - Incra's largest Right Angle Fixture is included to keep workpieces square to the fence and square to the table for joinery operations.

  • 27" x 43" Offset Router Table Top - All of INCRA's new lineup of heavy duty router table tops feature a 1-1/4" MDF substrate with a high pressure horizontal grade phenolic laminate top and bottom. With a total thickness of 1-3/8", these tops are designed to support even the heaviest of production routers and lifts, and will work with any standard  9-1/4" x 11-3/4" mounting plate.
    Rather than the typical router plate leveling set screws that dig into the table's recess requiring constant re-adjustment, Incra's plate leveling system puts flat head levelers in the table, not in the router mounting plate. Access to these levelers is through the 10 access holes located around the perimeter of the mounting plate. Just insert the hex key in the access holes and turn to adjust. After leveling, a simple quarter turn of the corner mounted Cam-Lock securely holds the plate in the router table's recess.

  • MagnaLOCK Router Plate - All INCRA Router Tables are shipped with a 3/8in solid aluminum router mounting plate, pre-drilled for your router, featuring the exclusive Magna-Lock magnetic throat plate system. Changing any of the included throat plates is a snap with the Magna Lock System.

  • 3 MagnaLOCK Ring Inserts  - Just drop in the selected plate. The high energy, rare-earth magnets hold the plate secure and perfectly flush every time. All of Incra's mounting plates include 3 laser cut throat plates with a 1", 2-1/8" and 3-5/8" opening.

  • 43" Router Table Stand - Constructed of hard anodized aluminum and "armor plated" powder coat heavy gauge steel for years of durable performance in your workshop.
    T-Slotted Aluminum legs permit easy assembly and allow for positioning of the optional shelf supports at any height. Great for creating a shelf at a comfortable level. Non-skid leg levelers for vertical height adjustability from 34-1/2" to 36-1/2". Need a cabinet for your router station? No problem with Incra's innovative leg design. Just slide 1/2" panels into the channel on each leg to easily enclose the stand. Create the ultimate dust collection enclosure in minutes.

  • Master Reference Guide with 51-piece (imperial) Template Library - The Master Reference Guide provides straightforward instructions and 25 metric joinery templates to slide into the positioner to provide a visual reference for each joint pattern.Those templates can produce a mind-boggling variety of joints - 9 metric box joint patterns and 16 metric dovetail patterns are included, and each one of the dovetail patterns can be cut half blind, through, sliding, or corner post.

  • 82-Minute Instructional LS Positioner DVD - This great disc is loaded with information - how to take advantage of the optional Wonder Fence's advanced features, cut perfect fitting rabbets and dadoes, and it has full-length instructions for box joints and the four most common styles of dovetail joints.

Incra Router Plate Reference:

Plate #Application
MLPUNDRILLED-AL Undrilled
MLPM12V-AL  Hitachi M12V
MLPFT2000-AL  Freud FT-2000
MLPFT3000-AL  Freud FT-3000
MLP7518-AL  PC 7518, 7539; Triton
MLP690890-AL  PC 690, 890, 7529; Makita 1101; Bosch 1617, 1618
MLP621625-AL  DeWalt 621, 625; Fein RT1800
MLP3612C-AL  Makita 3612-C
MLP1619-AL  Bosch 1619
MLP1613-AL  Bosch 1613
