CSM Triple Chip Grinding Chart

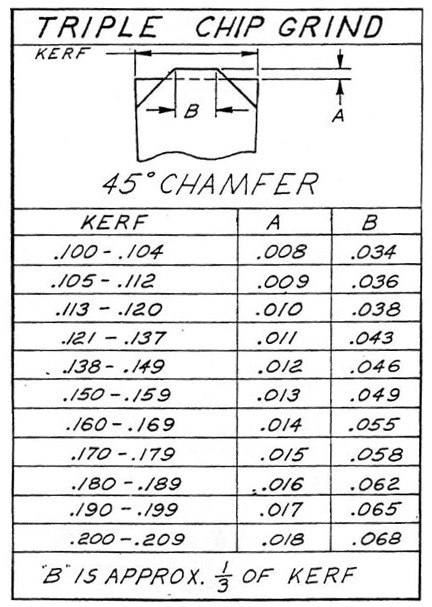

TRIPLE CHIP GRIND


45° CHAMFER



KERFAB
.100 - .104 .008 .034
.105 - .112 .009 .036
.113 - .120 .010 .038
.121 - .137 .011 .043
.138 - .149 .012 .046
.150 - .159 .013 .049
.160 - .169 .014 .055
.170 - .179 .015 .058
.180 - .189 .016 .062
.190 - .199 .017 .065
.200 - .209 .018 .068
"B" IS APPROX. 1/3 OF KERF
