Door Hinge Bits

Hinge boring bits are used for drilling hinge pockets for European style hinges such as Blum and Hafele

Carbide tipped for maximum tool life
Cutting diameters from 15mm to 40mm
57mm and 70mm lengths
Available in both right and left rotation

Cutting Diameter	Shank Diameter	Overall Length	Material	Brand	LH Part #	RH Part #
15mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5715LH	SEHB5715RH
15mm	10mm	57mm	Carbide Tipped	Whiteside	DH 15-57 (LH)	DH 15-57 (RH)
15mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7015LH	SEHB7015RH
15mm	10mm	70mm	Carbide Tipped	Whiteside	DH 15-70 (LH)	DH 15-70 (RH)
16.5mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB70165LH	SEHB70165RH
16mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5716LH	SEHB5716RH
16mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7016LH	SEHB7016RH
17mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5717LH	SEHB5717RH
17mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7017LH	SEHB7017RH
18mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5718LH	SEHB5718RH
18mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7018LH	SEHB7018RH
19mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5719LH	SEHB5719RH
19mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7019LH	SEHB7019RH
20mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5720LH	SEHB5720RH
20mm	10mm	57mm	Carbide Tipped	Whiteside	DH 20-57 (LH)	DH 20-57 (RH)
20mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7020LH	SEHB7020RH
20mm	10mm	70mm	Carbide Tipped	Whiteside	DH 20-70 (LH)	DH 20-70 (RH)
22mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5722LH	SEHB5722RH
22mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7022LH	SEHB7022RH
24mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5724LH	SEHB5724RH
24mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7024LH	SEHB7024RH
25mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5725LH	SEHB5725RH
25mm	10mm	57mm	Carbide Tipped	Whiteside	DH 25-57 (LH)	DH 25-57 (RH)
25mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7025LH	SEHB7025RH
25mm	10mm	70mm	Carbide Tipped	Whiteside	DH 25-70 (LH)	DH 25-70 (RH)
26mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5726LH	SEHB5726RH
26mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7026LH	SEHB7026RH
28mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5728LH	SEHB5728RH
28mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7028LH	SEHB7028RH
30mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5730LH	SEHB5730RH
30mm	10mm	57mm	Carbide Tipped	Whiteside	DH 30-57 (LH)	DH 30-57 (RH)
30mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7030LH	SEHB7030RH
30mm	10mm	70mm	Carbide Tipped	Whiteside	DH 30-70 (LH)	DH 30-70 (RH)
32mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5732LH	SEHB5732RH
32mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7032LH	SEHB7032RH
34mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5734LH	SEHB5734RH
34mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7034LH	SEHB7034RH

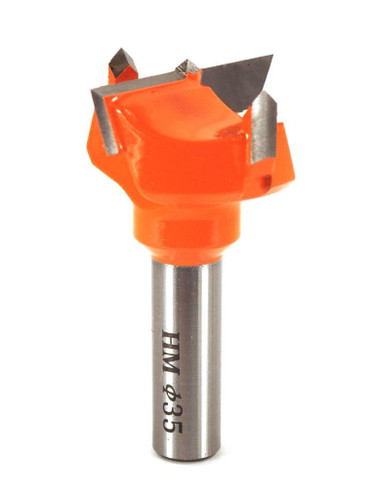

35mm	3/8"	2 3/8"	Carbide Tipped	Whiteside		6140
35mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5735LH	SEHB5735RH
35mm	10mm	57mm	Carbide Tipped	Whiteside	DH 35-57 (LH)	DH 35-57 (RH)
35mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7035LH	SEHB7035RH
35mm	10mm	70mm	Carbide Tipped	Whiteside	DH 35-70 (LH)	DH 35-70 (RH)
36mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5736LH	SEHB5736RH
36mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7036LH	SEHB7036RH
38mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5738LH	SEHB5738RH
38mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7038LH	SEHB7038RH
40mm	10mm	57mm	Carbide Tipped	Southeast Tool	SEHB5740LH	SEHB5740RH
40mm	10mm	70mm	Carbide Tipped	Southeast Tool	SEHB7040LH	SEHB7040RH
