3100L - 2 Flute Compression Spiral (Left Hand)

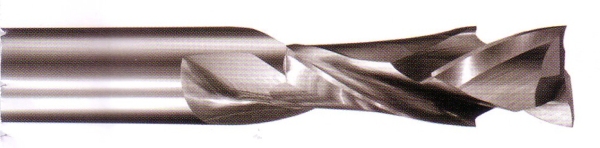

Vortex Series 3100L - 2 Flute, Compression, Spiral Router Bits (Left Hand)
Compression (Left Hand) Spiral Router Bits - (2 Flute) Solid Carbide - Vortex. Another Vortex Industry First! Multiple flutes up and down, these tools were manufactured for users who want to run at 1000-1500 inches per minute. Designed for today's high feed rate machines and spindles speeds up to 40,000 RPM.
| Shank Diameter | Cutting Edge Diameter | Cutting Edge Length | Overall Length | sku |
| 1/4 | 1/4 | 7/8 | 2 1/2 | 3110L |
| 1/4 | 1/4 | 5/8 | 2 1/2 | 3115L* |
| 3/8 | 3/8 | 1 1/8 | 3 | 3130L |
| 3/8 | 3/8 | 7/8 | 3 | 3185L (m) |
| 1/2 | 1/2 | 1 | 3 | 3135L |
| 1/2 | 1/2 | 1 | 3 | 3189L (m) |
| 1/2 | 1/2 | 1 3/8 | 3 1/2 | 3152L |
| 1/2 | 1/2 | 1 5/8 | 3 1/2 | 3190L (m) |
| 1/2 | 1/2 | 1 3/4 | 3 1/2 | 3160L |
| 1/2 | 1/2 | 2 | 4 | 3162L |
| 1/2 | 9/16 | 1 | 3 | 3168L (m) |
| 5/8 | 5/8 | 2 | 4 | 3170L |
| 3/4 | 3/4 | 2 | 4 | 3180L |
| 3/4 | 3/4 | 2 1/2 | 5 | 3183L |
(m) = 1/4 upcut for mortise cuts or thin material
* = 3/16" upcut for 1/4" mortise cut or 1/4" material
