Hex L-Keys - ProGuard Finish - Packaged

Bondhus hex L-keys with ProGuard finish feature a proprietary black corrosion protection that completely seals the tool. It is permanently bonded to the tool and will not chip or peel. Available in long or short arm configuration.

Bondhus L-keys are proudly made in the USA. They are some of the toughest tools in the industry and have a Lifetime Guarantee. Click Here to view or download the Bondhus Technical Resource Manual for more information on how these L-keys are manufactured and tested.

Hex Singles with ProGuard™ finish

Packaged Quantities - Long & Short

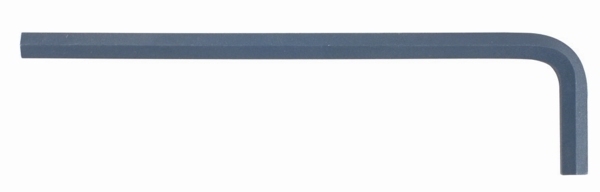

Inch Sizes - Long
Size	Inch	mm	Qty	Part #
.028"	2.6	66	10	12100
.035"	2.7	68	10	12101
.050"	2.8	72	10	12102
1/16"	3	76	10	12103
5/64"	3.2	81	10	12104
3/32"	3.4	86	10	12105
7/64"	3.6	90	10	12106
1/8"	3.8	95	10	12107
9/64"	4	101	10	12108
5/32"	4.2	107	10	12109
3/16"	4.5	114	10	12110
7/32"	4.9	124	5	12111
1/4"	5.3	133	5	12112
5/16"	6	152	5	12113
3/8"	6.8	171	5	12114
7/16"	7.5	191	1	12115
1/2"	8.3	210	1	12116
9/16"	9	229	1	12117
5/8"	9.8	248	1	12118
3/4"	11.3	287	1	12119
7/8"	12.8	325	1	12120
1"	14.2	362	1	12121
1 1/4"	17.1	435	1	12125
1 1/2"	20.4	518	1	12129

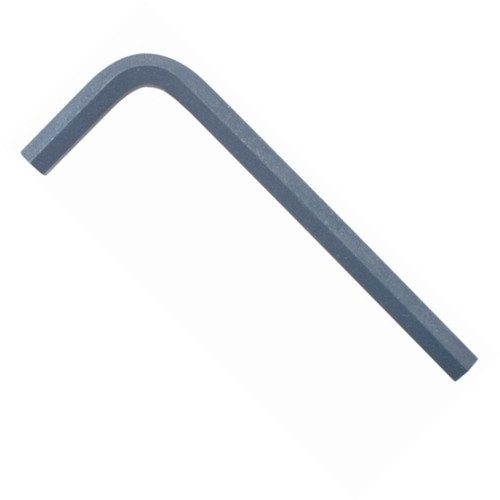

Inch Sizes - Short
Size	Inch	mm	Qty	Part #
.028"	1.2	31	10	12200
.035"	1.2	31	10	12201
.050"	1.6	42	10	12202
1/16"	1.8	45	10	12203
5/64"	1.9	48	10	12204
3/32"	2	51	10	12205
7/64"	2.1	54	10	12206
1/8"	2.3	58	10	12207
9/64"	2.4	61	10	12208
5/32"	2.5	64	10	12209
3/16"	2.8	70	10	12210
7/32"	3	77	5	12211
1/4"	3.3	83	5	12212
5/16"	3.8	96	5	12213
3/8"	4.3	108	5	12214
7/16"	4.8	121	1	12215
1/2"	5.3	133	1	12216
9/16"	5.8	146	1	12217
5/8"	6.3	159	1	12218
3/4"	7.3	184	1	12219
7/8"	8.2	210	1	12220
1"	9.2	235	1	12221
1 1/4"	11.2	286	1	12225
1 1/2"	13.2	336	1	12229
1 3/4"	13.5	343	1	12231
2"	15.3	387	1	12233
Metric Sizes - Long
Size	Inch	mm	Qty	Part #
.71mm	2.6	66	10	12147
.89mm	2.7	68	10	12148
1.27mm	2.8	72	10	12149
1.5mm	3	77	10	12150
2.0mm	3.2	82	10	12152
2.5mm	3.5	88	10	12154
3.0mm	3.9	98	10	12156
3.5mm	3.9	100	1	12158
4.0mm	4.3	109	10	12160
4.5mm	4.5	114	1	12162
5.0mm	4.7	119	5	12164
5.5mm	4.9	124	1	12166
6mm	5.5	139	5	12168
7mm	5.5	150	1	12170
8mm	6	162	5	12172
9mm	6.3	175	1	12174
10mm	6.7	187	5	12176
11mm	7.9	200	1	12178
12mm	8.7	220	1	12180
14mm	10.2	259	1	12184
17mm	11	280	1	12186
19mm	11.6	295	1	12188
22mm	13	330	1	12191
24mm	14.5	370	1	12193
32mm	17.1	435	1	12196
36mm	20.5	520	1	12198
Metric Sizes - Short
Size	Inch	mm	Qty	Part #
.71mm	1.2	31	10	12247
.89mm	1.2	31	10	12248
1.27mm	1.6	42	10	12249
1.5mm	1.7	44	10	12250
2.0mm	1.9	49	10	12252
2.5mm	2.1	54	10	12254
3.0mm	2.4	61	10	12256
3.5mm	2.6	65	1	12258
4.0mm	2.7	68	10	12260
4.5mm	2.9	73	1	12262
5.0mm	3.1	78	5	12264
5.5mm	3.3	83	1	12266
6mm	3.5	88	5	12268
7mm	3.7	93	1	12270
8mm	3.9	98	5	12272
9mm	4	102	1	12274
10mm	4.3	109	5	12276
11mm	4.5	115	1	12278
12mm	4.8	122	1	12280
14mm	5.4	136	1	12284
17mm	6.1	156	1	12286
19mm	6.9	175	1	12288
22mm	7.7	195	1	12291
24mm	8.6	219	1	12293
27mm	9.6	244	1	12295
32mm	12.1	307	1	12296
36mm	13.6	346	1	12298
