1320mm Range Metric TS-LS Joinery System w/ 32x21 LEFT Side Router Table, Incra M-TS Combo #3-XL

  • Incra TS Combo #3 - 52in Range TS-LS Joinery System with 28 x 21 LEFT Side Router Table
  • Incra LS Positioner Detail - Incra M-TS COMBO #3-XL
  • Incra Shop Stop
  • Incra LS Positioner Lead Screw Fine Adjustment
  • Incra Wonder Fence Split Fence
  • Incra Master Reference Guide and Template Library
Retail:
$1,189.95
Our Low Price:
$1,077.50 (You save $112.45)
SKU:
851-M-TS Combo #3-XL
Brand:
Reviews:
Availability:
Due to increased popularity and high order volume, most Incra products are experiencing a higher lead time and will ship within 7-9 weeks from order date. We will ship orders sooner whenever possible.
Shipping:
Free Shipping


Product Description

Metric Table Saw Combo #3-XL is a complete table saw upgrade package with metric scales for saws measuring 30-31" deep. The upgrade adds a 32 x 21 table saw router table by replacing the left side extension on your saw and adds the complete Incra table saw / router table fence system with the incredible 810mm LS Positioner.

Due to increased popularity, this item is on back order and will take between 6-7 weeks to ship.  We apologize for the inconvenience.

This upgrade package is not compatible with saws having a left side motor. View the Compatibility Chart for more information.

INCRA Metric Table Saw Combo #3-XL Consists of:

  • INCRA LS Positioner 810mm - The LS Positioner offers rock-solid fence travel of 810mm. Lifting the red locking lever causes the patented steel lead screw positioning system to instantly snap the fence to the dead center of any multiple of 1mm with an accuracy of 0.05mm. This allows fence positioning far beyond what's possible by eyesight alone, and fence setups are instantly repeatable. The integrated micro adjust knob allows moving between whole increments with 0.025mm resolution for total control over small fence adjustments.

  • 32" x 21" Left-Side Router Table - Designed specifically as an accessory to the TS-LS and TS-III saw fence systems, this 32" x 21" router table replaces the left-side extension wing on the saw. It's size is appropriate for saws measuring 30"-31" deep along the miter slot, and it allows working at the more open left end of the saw for plenty of routing capacity and easy access around the router. All of INCRA's new lineup of heavy duty router table tops feature a 1-1/4" MDF substrate with a high pressure horizontal grade phenolic laminate top and bottom. With a total thickness of 1-3/8", these tops are designed to support even the heaviest of production routers and lifts, and will work with any standard  9-1/4" x 11-3/4" mounting plate.
    Rather than the typical router plate leveling set screws that dig into the table's recess requiring constant re-adjustment, Incra's plate leveling system puts flat head levelers in the table, not in the router mounting plate. Access to these levelers is through the 10 access holes located around the perimeter of the mounting plate. Just insert the hex key in the access holes and turn to adjust. After leveling, a simple quarter turn of the corner mounted Cam-Lock securely holds the plate in the router table's recess.

  • 92" Rails

  • TS Rail Support Legs

  • Standard Rip Fence - Attaches directly to the LS Positioner for standard table saw ripping operations.

  • Wonder Fence Router Table Fence (metric) - The Wonder Fence slides into the front T-slot of the Pro-II joinery fence, and it adds adjustability to accept any size router bit and accommodates zero-clearance subfences. The Wonder Fence also adds the ability to very precisely offset the infeed and outfeed fence halves for edge jointing rough lumber or setting up for complex moulding jobs like reversible glue joints.

  • Hi-Rise Fence Cap - Keeps larger parts perfectly vertical for edge machining operations.

  • INCRA Shop Stop - Instead of the basic stop block of typical router fences, the included INCRA Shop Stop is based on their patented incremental positioning racks to give you unparalleled accuracy and repeatability when limiting a board's travel across the router bit or setting the endpoints of stopped grooves for drawer and box bottoms.

  • Right Angle Fixture - Incra's largest Right Angle Fixture is included to keep workpieces square to the fence and square to the table for joinery operations.

  • MagnaLOCK Router Plate - All INCRA Router Tables are shipped with a 3/8" solid aluminum router mounting plate, pre-drilled for your router, featuring the exclusive Magna-Lock magnetic throat plate system. Changing any of the included throat plates is a snap with the Magna Lock System.

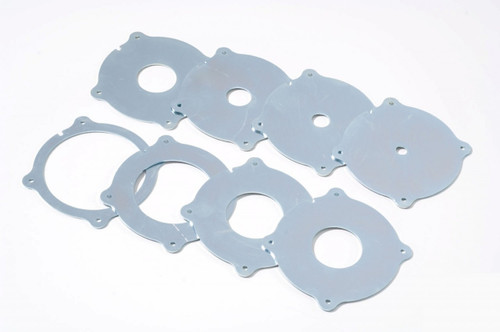

  • 3 MagnaLOCK Ring Inserts - Just drop in the selected plate. The high energy, rare-earth magnets hold the plate secure and perfectly flush every time. All of Incra's mounting plates include 3 laser cut throat plates with a 1", 2-1/8" and 3-5/8" opening. Other sizes available separately.

  • Master Reference Guide with 25-piece (metric) Template Library - The Master Reference Guide provides straightforward instructions and 25 joinery templates to slide into the positioner to provide a visual reference for each joint pattern.Those templates can produce a mind-boggling variety of joints - 9 metric box joint patterns and 16 metric dovetail patterns are included , and each one of the dovetail patterns can be cut half blind, through, sliding, or corner post.

  • 82-Minute Instructional LS Positioner DVD - This great disc is loaded with information - how to take advantage of the Wonder Fence's advanced features, cut perfect fitting rabbets and dadoes, and it has full-length instructions for box joints and the four most common styles of dovetail joints.

  • Instruction Manuals

Incra Router Plate Reference:

Plate #Application
MLPUNDRILLED-AL Undrilled
MLPM12V-AL  Hitachi M12V
MLPFT2000-AL  Freud FT-2000
MLPFT3000-AL  Freud FT-3000
MLP7518-AL  PC 7518, 7539; Triton
MLP690890-AL  PC 690, 890, 7529; Makita 1101; Bosch 1617, 1618
MLP621625-AL  DeWalt 621, 625; Fein RT1800
MLP3612C-AL  Makita 3612-C
MLP1619-AL  Bosch 1619
MLP1613-AL  Bosch 1613

Warning SymbolWARNING: Cancer and Reproductive Harm—www.P65Warnings.ca.gov


Warranty Information

Manufacturer's Warranty and our own 100% satisfaction guarantee. We will replace or refund immediately if you are unhappy with any purchase from us for any reason at any time. We will do all we can to help you with any problem you have. Most manufacturers will only replace a defective tool and they have to decide what defective means.
